Description
PRODUCT OVERVIEW
The VIC MAC Bullet-Proof Modi Jacket is designed for discreet personal protection while retaining the appearance and comfort of a conventional Nehru / Modi-style jacket. Removable ballistic inserts allow the garment to be configured according to the required protection level. The jacket is intended for VIP, government and close-protection applications where low visual profile, seated comfort and freedom of movement are important.
KEY FEATURES
- Looks like a conventional Nehru / Modi-style jacket.
- Removable ballistic inserts.
- Thin, low-profile construction intended to minimise visible bulk.
- Cloth and colour options available.
- Designed to permit comfortable sitting and normal movement.
- Approximate common weight: 2.5 kg including outer jacket.
- Ballistic insert warranty commonly documented as 5 years; outer jacket warranty 2 years.
- Complete ballistic jacket supplied with integrated armour panels.
- Armour panels only, supplied separately for integration into the customer’s existing compatible jacket/carrier.
TECHNICAL SPECIFICATIONS
| Parameter | Common / Indicative Specification |
| Common / Indicative Specification | NIJ Level IIIA |
| Applicable Standard | NIJ 0101.06 / applicable approved revision, as confirmed for supplied configuration |
| Approx. Weight | 2.5 kg with outer jacket – common documented value |
| Ballistic Inserts | Removable |
| Outer Style | Nehru / Modi-style jacket |
| Cloth / Colour | Multiple options; made to requirement |
| Mobility | Low-profile design intended for seated and standing movement |
| Warranty – Ballistic Inserts | 5 years – common documented value |
| Warranty – Outer Jacket | 2 years – common documented value |
These are common configurations currently documented. Other configurations can be manufactured to approved customer specification.
APPLICATIONS
- VIP and executive protection
- Government officials and dignitaries
- Close-protection details
- Low-profile security assignments
GALLERY GUIDANCE
- Front worn view
- Rear worn view
- Side profile
- Ballistic insert removed
- Fabric / colour options
RELATED PRODUCTS
Bullet-Proof Umbrella | Ballistic Briefcase
FINAL CTA
VIC MAC products are manufactured to the buyer’s approved requirement. The values shown are common configurations in existing VIC MAC technical sheets.
KEY FEATURES
- Corrosion-resistant alloy network used inside fuel tank / container.
- Supplied as net layers or net-ball material depending on application.
- Acts as a heat-absorbing internal structure.
- Documented to occupy only about 1.7-2% of tank volume.
- Designed to maintain substantially unimpeded fuel flow.
- Can be installed during tank fabrication or as retrofit.
- Suitable for vehicle fuel tanks and other volatile-liquid / gas containers where specified.
- Historic product material references European laboratory testing.
APPLICATIONS
- Armoured and security vehicles
- Military and paramilitary fleets
- Fuel storage / transport applications subject to engineering approval
- Fuel storage / transport applications subject to engineering approval
PRODUCT OVERVIEW
VIC MAC supplies anti-explosion material for fuel tanks and combustible-liquid containers using a specially formed corrosion-resistant alloy network placed inside the tank. The system increases internal heat-absorbing surface area and is designed to reduce the conditions required for ignition and explosion. It can be installed during manufacture or retrofitted to an existing tank without major structural modification.
TECHNICAL SPECIFICATIONS
| Parameter | Common / Indicative Specification |
| System | Anti-explosion alloy network for fuel / combustible-liquid containers |

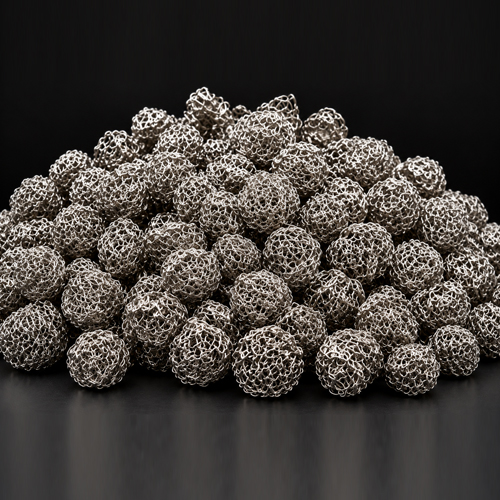

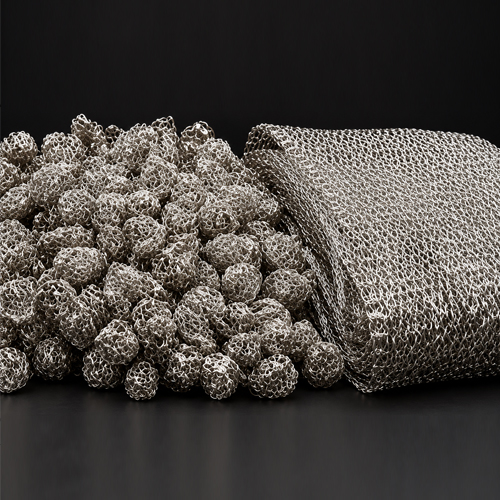

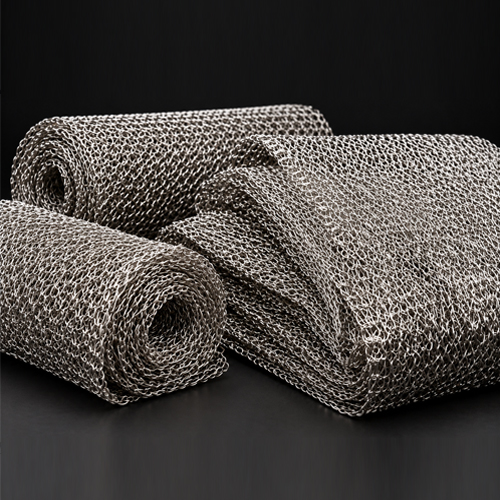

| Material Form | Net layers / small network balls |
| Installation | Inside tank / container; new build or retrofit |
| Typical Volume Occupancy | Approx. 1.7-2% of container volume |
| Specific Weight | Approx. 0.450 to 0.550 kg per 10 litres of volume |
| Flow | Network geometry intended to maintain fuel flow |
| Corrosion Function | Alloy network also described as assisting internal corrosion control in conductive-moisture conditions |
| Vehicle Retrofit | Can be installed without structural modification to the tank in the absence of internal baffle plates; modifications required if baffle plates are present in the fuel tank. |
COMMON CONFIGURATIONS / OPTIONS

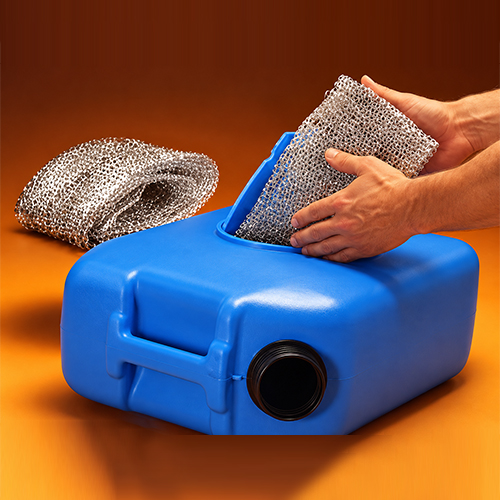

These are common configurations currently documented. Other configurations can be manufactured to approved customer specification. Vehicle Fuel-Tank Retrofit- Existing tank filled with engineered alloy network / net-ball material.
- Vehicle-specific quantity based on tank geometry.
- Installed during tank / container fabrication
- Automobiles / combat vehicles
- Road / rail tankers
- Boats / aircraft / stationary fuel storage where technically approved
